| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Bluetooth свързаност |
5.4 |
| Chipset |
AMD X870 Chipset |
| Connectors |
Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage Related;3 x M.2 slots (Key M);4 x SATA 6Gb/s ports USB;1 x USB 20Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable RGB Gen 2 headers;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1 pin);1 x 10-1 pin System Panel header |
| CPU's supported |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Features |
ASUS 5X PROTECTION III;- DIGI+ VRM (- Digital power design with DrMOS);- LANGuard;- Overvoltage protection;- SafeSlot;- Stainless-steel back I/O;ASUS Q-Design;- PCIe Slot Q-Release;- Q-Antenna;- Q-Dashboard;- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;- Flexible M.2 heatsink;- VRM heatsink design;ASUS EZ DIY;- BIOS FlashBack™ button;- BIOS FlashBack™ LED;- ProCool;- Pre-mounted I/O shield;- SafeSlot;Aura Sync;- Addressable RGB Gen 2 headers;Software Features:;ASUS Exclusive Software;Armoury Crate;- Aura Creator;- Aura Sync;- Fan Xpert 4 with AI Cooling II;ASUS AI Advisor;ASUS DriverHub;ASUS GlideX;TurboV Core;ASUS CPU-Z;Norton 360 Deluxe (60 Days Free Trial);WinRAR (40 Days Free Trial);UEFI BIOS;ASUS EZ DIY;- ASUS CrashFree BIOS 3;- ASUS EZ Flash 3;- ASUS UEFI BIOS EZ Mode;- ASUS MyHotkey |
| Form Factor |
ATX Form Factor, 30.5 cm x 24.4 cm |

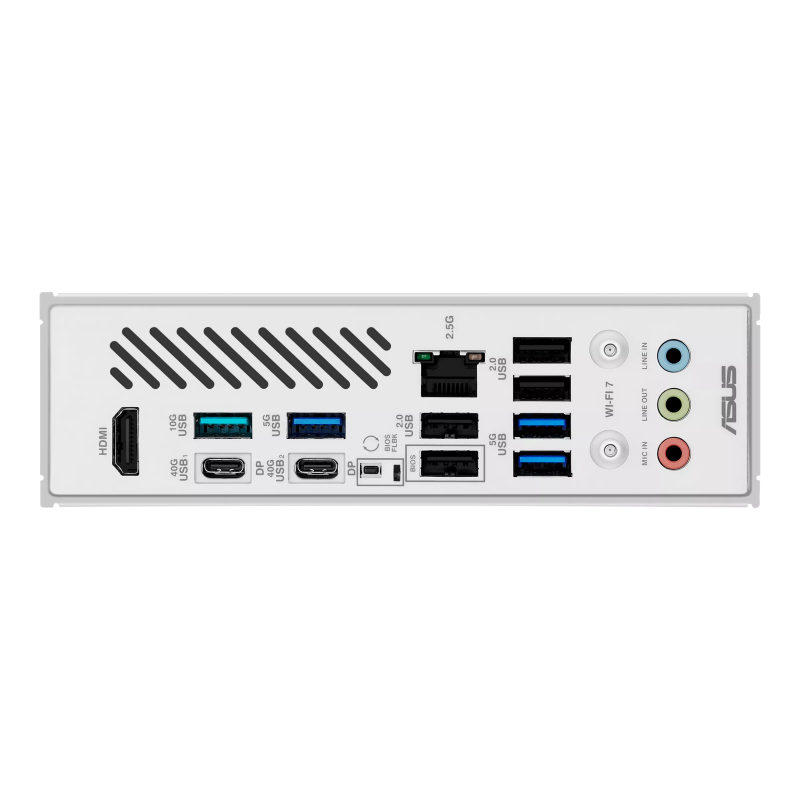

| I/O |
2 x USB4® (40Gbps) ports (2 x USB Type-C®);1 x USB 10Gbps port (1 x Type-A);3 x USB 5Gbps ports (3 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button |
| LAN |
1 x Realtek 2.5Gb Ethernet;ASUS LANGuard |
| Ram памет - вид |
4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors;ECC and Non-ECC, Un-buffered DIMM*;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP) |
| Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);AMD Ryzen™ 8000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode);AMD X870 Chipset;M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s portsAMD RAIDXpert2 Technology;Ryzen™ 9000 Series Processors: RAID 0/1/5/10;Ryzen™ 8000 Series Processors: RAID 0/1;Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| USB |
Rear USB (Total 10 ports);2 x USB4® (40Gbps) ports (2 x USB Type-C®);1 x USB 10Gbps port (1 x Type-A);3 x USB 5Gbps ports (3 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 7 ports);1 x USB 20Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports |

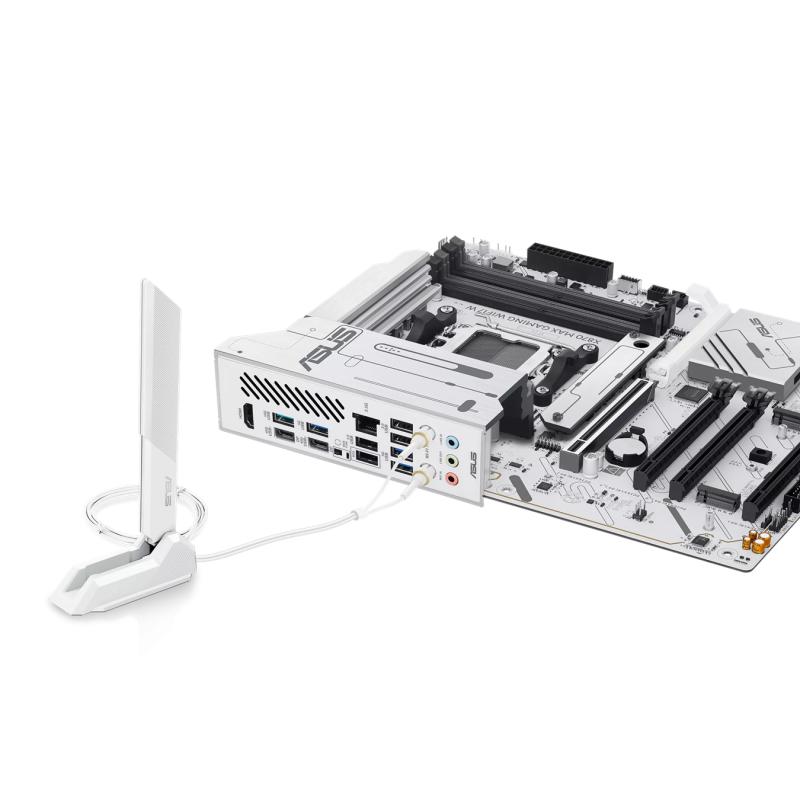

| Безжична свързаност |
Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.;Bluetooth® v5.4 |
| Видео карта |
1 x HDMI™ port;2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| Операционна система |
Windows 11 |
| Производител |
ASUS |
| Слотове за памет |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD X870 Chipset;2 x PCIe 4.0 x16 slots (support x1 mode);1 x PCIe 3.0 x16 slot (supports x1 mode) |
