| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Rear optical S/PDIF out port;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover |
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
| Bluetooth свързаност |
5.2 |
| Chipset |
Intel® B760 Chipset |
| Connectors |
Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;1 x 4-pin +12V Power connector;Storage related;3 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 2 connector (supports USB Type-C® );1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x 20-3 pin System Panel header with Chassis intrude function;1 x Thunderbolt™ (USB4®) header |
| CPU's supported |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Features |
ASUS TUF PROTECTION;- DIGI+ VRM (- Digital power design with DrMOS);- ESD Guards;- TUF LANGuard;- Overvoltage Protection;- SafeSlot Core+;- Stainless-Steel Back I/O;ASUS Q-Design;- M.2 Q-Latch;- Q-DIMM;- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]);- Q-Slot;ASUS Thermal Solution;- M.2 heatsink;- VRM heatsink design;ASUS EZ DIY;- CPU Socket lever protector;- ProCool;- Pre-mounted I/O shield;- SafeSlot Core+;- SafeDIMM;Aura Sync;- Aura RGB header;- Addressable Gen 2 headers;Software Features;ASUS Exclusive Software;Armoury Crate;- Aura Creator;- Aura Sync;- Fan Xpert 4;- Power Saving;- Two-Way AI Noise Cancellation;AI Suite 3;- DIGI+ VRM;- PC Cleaner;TUF GAMING CPU-Z;DTS Audio Processing;MyASUS;Norton 360 for Gamers;WinRAR;UEFI BIOS;ASUS EZ DIY;- ASUS CrashFree BIOS 3;- ASUS EZ Flash 3;- ASUS UEFI BIOS EZ Mode |
| Form Factor |
ATX Form Factor, 30.5 cm x 24.4 cm |

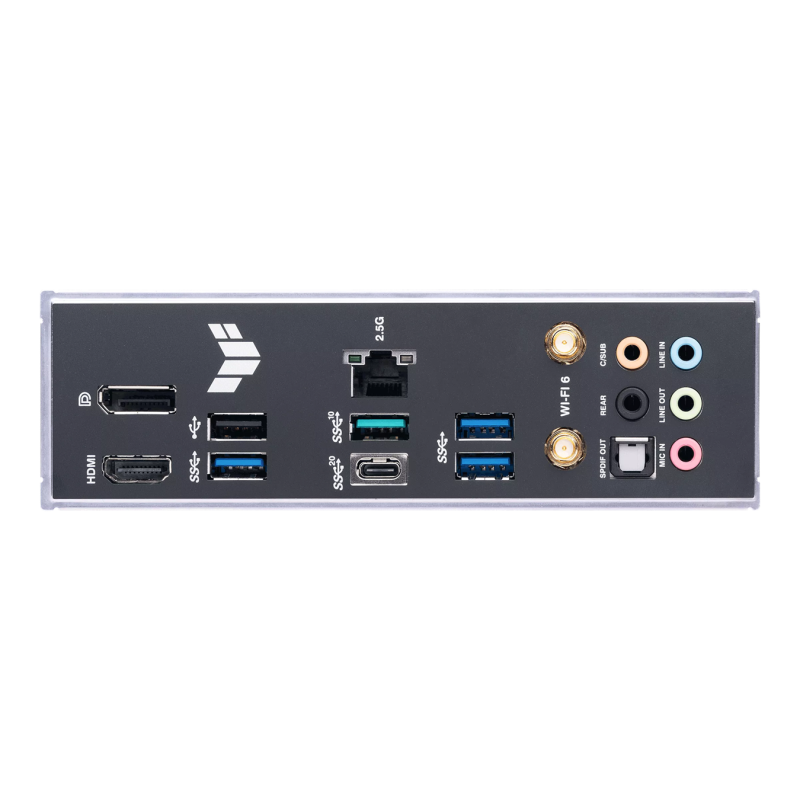

| I/O |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®);1 x USB 3.2 Gen 2 port (1 x Type-A);3 x USB 3.2 Gen 1 ports (3 x Type-A);1 x USB 2.0 port (1 x Type-A);1 x DisplayPort;1 x HDMI® port;1 x Wi-Fi Module;1 x Realtek 2.5Gb Ethernet port;5 x Audio jacks;1 x Optical S/PDIF out port |
| LAN |
1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Ram памет - вид |
4 x DIMM, Max. 192GB, DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP);OptiMem II |
| Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Processors (14th & 13th & 12th Gen);M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);Intel® B760 Chipset;M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports |
| USB |
Rear USB (Total 6 ports);1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®);1 x USB 3.2 Gen 2 port (1 x Type-A);3 x USB 3.2 Gen 1 ports (3 x Type-A);1 x USB 2.0 port (1 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 2 connector (supports USB Type-C®);1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Безжична свързаност |

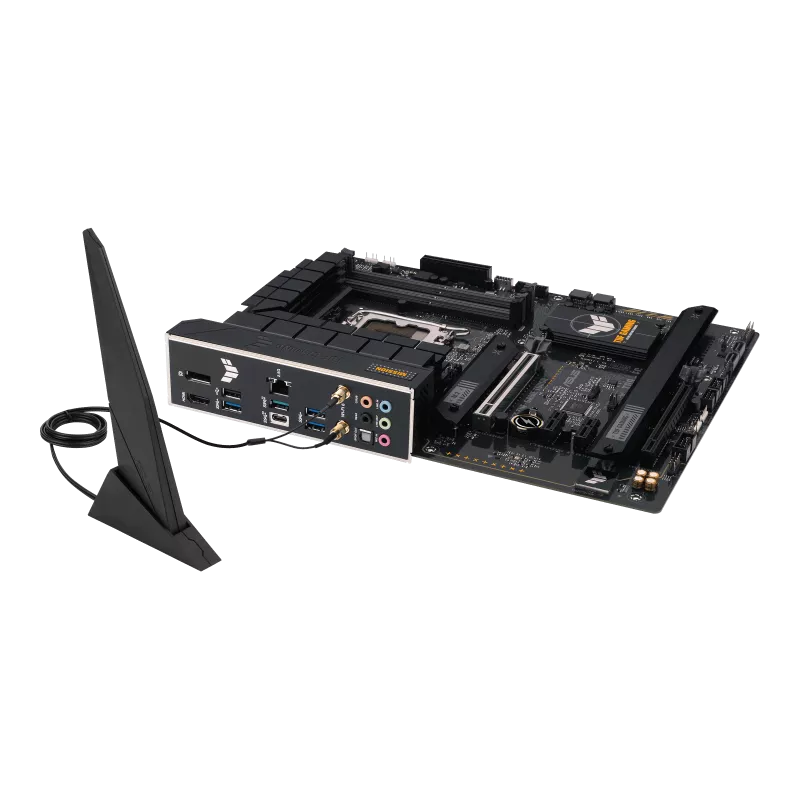

Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax);Supports 2.4/5GHz frequency band;Bluetooth® v5.2 |
| Видео карта |
1 x DisplayPort;1 x HDMI® port |
| Операционна система |
Windows® 11, Windows® 10 64-bit |
| Производител |
ASUS |
| Слотове за памет |
Intel® Core™ Processors (14th & 13th & 12th Gen);1 x PCIe 5.0 x16 slot;Intel® B760 Chipset;1 x PCIe 3.0 x16 slot (supports x4 mode);2 x PCIe 3.0 x1 slots |
